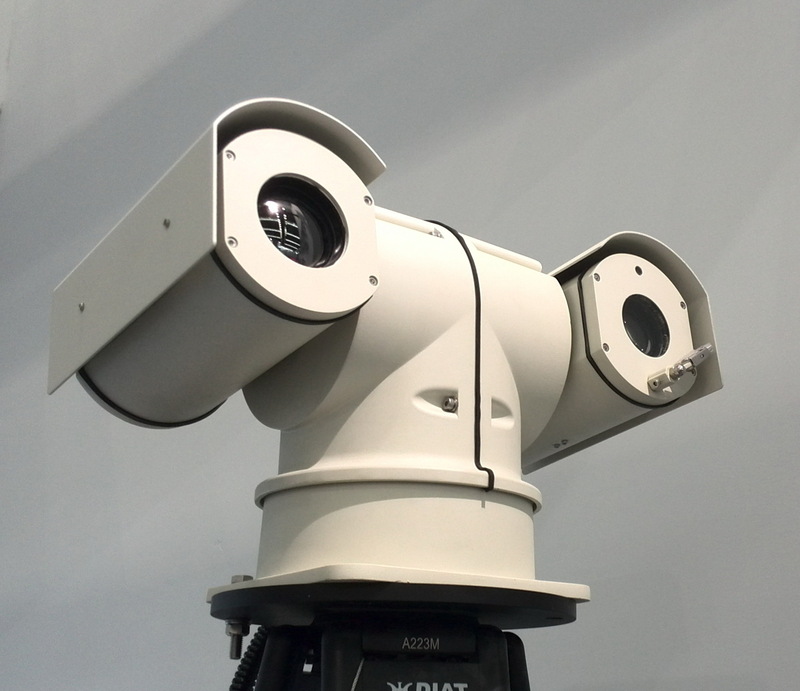

HD Optical & Thermal Imaging PTZ Camera
Model: TH-1000MRCX-HD
Features:
1. Visible light, thermal sensing dual-channelimaging technology, integrated structure, 24 hours monitoring;
2. Thermalimaging using international advanced uncooled polysilicon, micro heat detectors384x288 or 640X480 line;
3.Thermal imaging fixed focal length lens, visual field switch, continuous zoomselectable, motorized focus to obtain a clearer picture of night vision;according to the focal length of the lens can detect the target with distance upto 1000m;
4.Thermal imaging integrated temperature detection module, real-time analysis of target
areatemperature changes, automatic warning of fire detected;
5.High-definition video camera with penetrating fog imaging function, mechanicalfilter switch, 240 gray levels, automatic black level, contour correction;
6.Magnification zoom lens to telephoto needs, with auto-focus, preset function；
7.Preset reach to 256, support apple peeling scanning;
8.Resistance to harsh environments with advanced reinforcement, proof from dust,rain, salt spray, vibration and shock, IP66 level;
9.HD lens auto-focus function;
10.Maximum temperature display, mouse temperature tracking, multi-ring temperaturecontrast temperature alarm, multi-mode temperature alarm.
Applications:
Forestfire prevention, reservoirs, landslides, substations, power plants, petrochemicalfield, fireworks identification alarm, traffic intelligence analysis, runways,airport monitoring, smart city, police vehicle monitoring, etc.
Technical Specifications:
Mechanical Characteristics | ||
Application environment | Outdoor | |
Installation | Flat base mounting | |
Power supply | DC10.5-18V -3.5A | |
Power Consumption | ≤50W | |
Temperature &Humidity | -35℃~+55℃ & 35%～90% | |
Protection level | IP66, anti-rust, anti-corrosion coating | |
Weight | 6Kg | |
Size | 210*246*375mm | |
Visible Light Imaging | ||
Imaging | 1/4” Exview HAD CCD | |
Resolution | 1920*1080P | |
Synchronous System | Intenal/extrinsic | |
Video Output | VBS 1.0VP-P/75 | |
White balance | Auto/Manual | |
Scanning | 15.625KHz(H) 50HZ(V) | |
Horizontal resolution | 1080P/30fps | |
SNR | >50dB | |
Electronic Shutter | 1/1~1/10,000S/1/50~1/10,000S | |
Min illumination | Color 0.002Lux, Black-and-White 0.0002Lux | |
Focal length | F=4.1~73.8mm/3.5~91mm/3.4~122.4mm/7.8~310mm | |
Zoom factor | Total 216x/432, Optical 18x/36X, Digital 12x | |
Iris / Zoom | Auto/manual | |
Infrared Thermal imaging | ||
Detector Type | Focal plane array(FPA), Uncooled VOX, refrigeration micro bolometer | |
Pixels | 384x288/ 640X480 | |
Spectral range | 8-14μm | |
Lens focal length | 30mm, 50mm, 75mm | |
Focus | Motorized focus | |
Temperature Mode | The maximum temperature display, mouse temperature tracking, multi-ring temperature contrast temperature alarm, multi-mode temperature alarm | |
Auto Focus Lens | All the target near or far can be auto focused | |
Swatches control | Black hot, incandescent and other 11 kinds of swatches switch | |
Image Processing | Detail Enhancement (DDE), automatic gain control (AGC) | |
Fire Recognition | Integrated temperature measurement processor, real-time analysis of the target area temperature, and fire automatic warning | |
All-round Turntable & Shield | ||
Horizontal preset speed | 100º/S | |
Vertical preset speed | 80º/S | |
Horizontal manual control speed | 0~60º/S | |
Vertical manual control speed | 0~40º/S | |
Horizontal angle | 360º | |
Vertical angle | -90~+90º | |
Preset | Up to 128 | |
Control Interface | Multi-protocol,RS485 | |
Horizontal preset speed | 100º/S | |
Vertical preset speed | 80º/S | |
